How to Choose the Right High Voltage Transformer: Capacity, Losses & Efficiency Analysis

High voltage transformer installed in industrial substation illustrating capacity selection, loss analysis, and efficiency optimization, manufactured by China-based transformer factory for global wholesale supply to utilities, EPC contractors, and industrial projects.

A Complete Engineering Guide for Utilities, EPC Contractors & Industrial Buyers

Selecting the correct high voltage transformer is one of the most critical technical and financial decisions in any power project. Whether you are developing a utility substation, expanding an industrial facility, or integrating renewable energy into the grid, your transformer selection directly impacts:

  • System reliability

  • Capital investment

  • Operating costs

  • Energy efficiency compliance

  • Long-term return on investment

In this in-depth guide, we break down the three core selection factors — capacity, losses, and efficiency — and provide practical engineering insights to help you make the right decision.

As a global manufacturer, Yawei Transformer supports utilities and EPC contractors worldwide with customized high voltage transformer solutions. The insights below reflect real-world project experience.

1. What Is a High Voltage Transformer?

A high voltage transformer typically operates at primary voltages above 10 kV (such as 33kV, 66kV, 110kV and beyond). These transformers are essential in:

  • Utility substations

  • Industrial power systems

  • Renewable energy step-up stations

  • Mining and heavy industry

  • Data centers and infrastructure projects

Selecting the correct unit requires balancing electrical design, regulatory compliance, and lifecycle economics.

Read More:How Does a Transformer Work? A Complete Guide to Transformer Working Principle

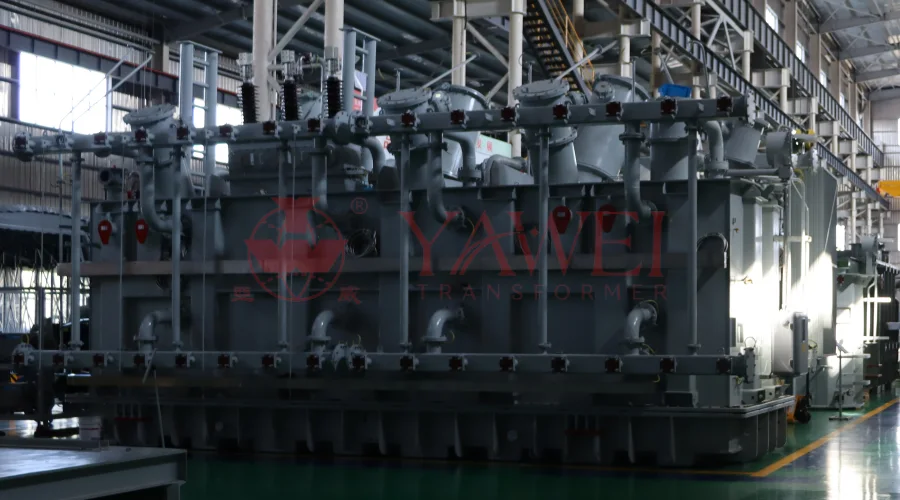

China high voltage transformer manufacturer producing large MVA power transformers in modern factory for global wholesale supply to utilities, EPC contractors, and industrial power projects.

2. Capacity Selection: How to Determine the Correct MVA Rating

Improper sizing is one of the most common and costly mistakes in transformer procurement.

Risks of Undersizing

  • Overloading

  • Accelerated insulation aging

  • Reduced service life

  • Increased failure probability

Risks of Oversizing

  • Higher upfront investment

  • Increased no-load losses

  • Lower efficiency at partial load

Basic Sizing Formula (Three-Phase System)

S=P/Cosϕ

Where:

  • S = Apparent Power (kVA / MVA)

  • P = Real Power (kW / MW)

  • cosφ = Power factor

5 Key Engineering Factors to Consider

1️⃣ Future Load Growth

Plan for 15–30% expansion margin over 5–10 years.

2️⃣ Starting Current of Large Motors

Motor-driven systems may require 1.3–1.5 safety factor.

3️⃣ Ambient Temperature

High ambient conditions reduce effective capacity.

4️⃣ Altitude

Installations above 1000 meters require cooling correction.

5️⃣ Redundancy Design (N+1)

Critical facilities like data centers require backup capacity.

Recommended Engineering Safety Factors

Application Type Recommended Margin
General Industry 1.2 ×
Heavy Motor Loads 1.3–1.5 ×
Renewable Energy 1.25 ×
Data Centers N+1 Design

A properly sized transformer should operate optimally at 70–85% load under normal conditions.

Learn More:Transformer Components Explained: Core Parts and Their Functions in Power Systems

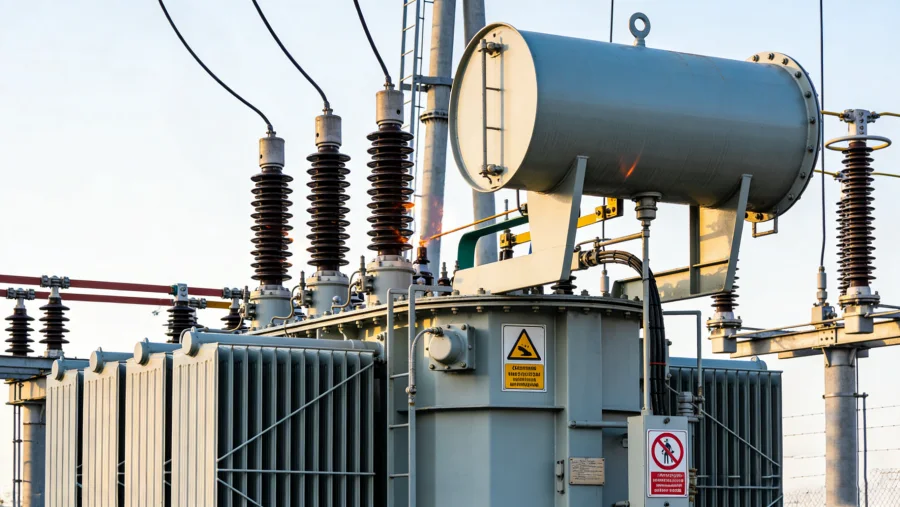

High voltage transformer installed in industrial substation illustrating MVA rating calculation to avoid undersizing and oversizing risks, manufactured by China-based transformer factory for global wholesale supply to utilities and industrial projects.

3. Understanding Transformer Losses: The Real Cost Driver

Transformer losses determine your lifetime operating cost.

1️⃣ No-Load Loss (Core Loss)

  • Occurs whenever the transformer is energized

  • Independent of load

  • Caused by magnetic hysteresis and eddy currents

Ideal for systems operating continuously at low load levels.

2️⃣ Load Loss (Copper Loss)

  • Proportional to current squared (I²R)

  • Increases with load

  • Generated in windings

3️⃣ Stray Loss

  • Caused by leakage flux

  • More significant in large MVA units

Lifecycle Cost Example (20 Years)

Assume:

  • 10 MVA transformer

  • 8,000 operating hours/year

  • Electricity cost: $0.10/kWh

Reducing no-load loss by just 5 kW results in:

5 × 8000 × 20 = 800,000 kWh saved

Equivalent to:

$80,000 in energy savings

👉 Conclusion: A lower-loss transformer may offer far greater financial value than the lowest purchase price.

Read More:Types of Transformers Explained: Classification by Structure, Cooling, and Application

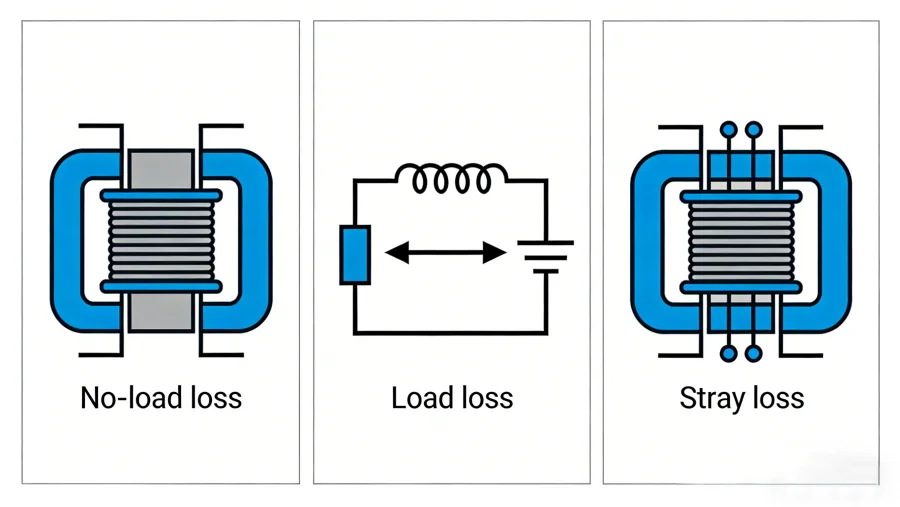

High voltage transformer in industrial substation illustrating total losses including no-load core loss, load copper loss, and stray loss, manufactured by China-based transformer factory for wholesale supply to European and American EPC projects.

4. Efficiency Analysis: How to Evaluate Transformer Performance

Efficiency formula:

η=Output/(Output+Losses)​

​

Typical high voltage transformer efficiency:

  • 98% – 99.5% at full load

  • Peak efficiency at 60–80% load

Why Full Load Operation Is Not Ideal

Continuous full-load operation leads to:

  • Higher temperature rise

  • Faster insulation aging

  • Reduced lifespan

Optimal performance zone:
👉 70%–85% load

International Efficiency Standards

Depending on project location, compliance may include:

  • DOE (United States)

  • EcoDesign (Europe)

  • GB Standards (China)

International EPC projects must verify compliance before procurement.

Get More:What Is a Pad Mounted Transformer? A Complete Guide for Underground Power Distribution

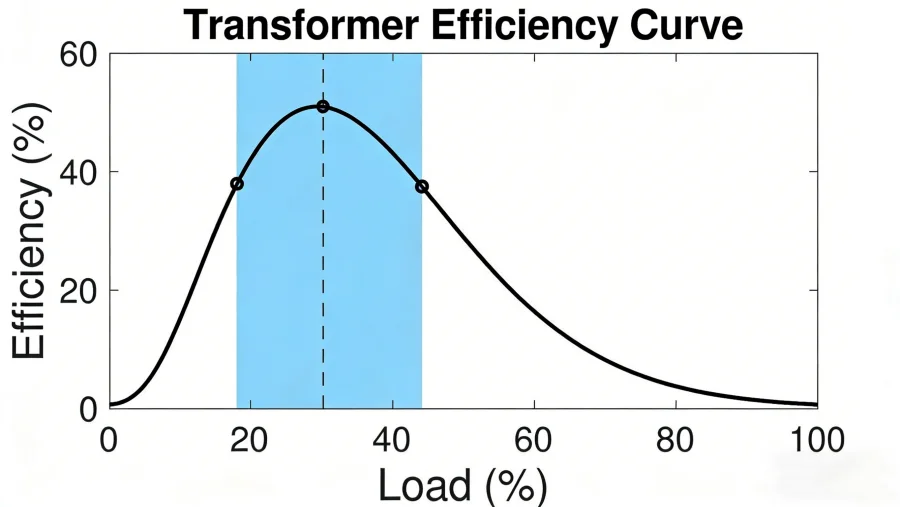

High voltage transformer in industrial substation illustrating efficiency calculation formula, peak efficiency zone, and compliance with international standards (DOE, EcoDesign, GB), manufactured by China-based transformer factory for global wholesale supply.

5. Balancing Capacity, Losses & Efficiency

Objective Strategy
Lowest CapEx Standard loss design
Lowest OpEx Low-loss design
High reliability Extra capacity margin
Renewable integration Optimize part-load efficiency

A professional manufacturer will help evaluate total cost of ownership (TCO), not just initial pricing.

High voltage power transformer installed in industrial substation, illustrating capacity sizing, loss reduction, and efficiency optimization strategies for lowering CapEx and OpEx in utility and EPC projects, manufactured by a China-based transformer factory for global wholesale supply.

6. Common Procurement Mistakes

❌ Selecting based solely on price
❌ Ignoring no-load losses
❌ Failing to plan future expansion
❌ Overlooking compliance standards
❌ Not calculating lifecycle cost

Successful projects evaluate:

Technical performance + Economic value + Long-term reliability

7. What Information to Provide When Requesting a Quotation

To receive an accurate technical proposal, prepare:

  • Rated capacity (kVA / MVA)

  • Primary & secondary voltage

  • Frequency (50Hz / 60Hz)

  • Impedance voltage

  • Cooling method (ONAN, ONAF, etc.)

  • Installation environment

  • Required efficiency standard

Providing complete technical data ensures faster and more accurate quotations.

8. Why Manufacturer Expertise Matters

High voltage transformers are 20–30 year assets. Supplier capability directly affects performance and reliability.

Look for manufacturers offering:

✔ Full routine & type testing
✔ High-grade silicon steel & copper
✔ Strict quality control systems
✔ International project references
✔ Engineering customization support

With decades of production experience, Yawei Transformer delivers engineered high voltage transformer solutions for utility and industrial applications worldwide.

High voltage transformer installed in utility substation illustrating definition, types, and applications in industrial power systems and renewable energy stations, manufactured by China transformer factory for global wholesale supply.

Final Thoughts: Smart Transformer Selection Strategy

Choosing the right high voltage transformer is not simply about selecting an MVA rating. It requires:

  1. Accurate capacity calculation

  2. Detailed loss analysis

  3. Efficiency curve evaluation

  4. Lifecycle cost assessment

  5. Compliance verification

When properly balanced, your transformer investment will deliver:

  • Lower operating costs

  • Extended service life

  • Improved grid stability

  • Stronger ROI

Request a Technical Consultation

If you are planning:

  • Utility substation expansion

  • Industrial power upgrades

  • Renewable energy step-up projects

  • International EPC power systems

Contact Yawei Transformer today for:

  • Free technical selection guidance

  • Loss comparison analysis

  • Lifecycle cost evaluation

  • Customized high voltage transformer solutions

📩 Submit your project specifications and our engineering team will respond within 24 hours.
