Utility-Grade Distribution Transformer for Overhead, Substation and Grid Networks

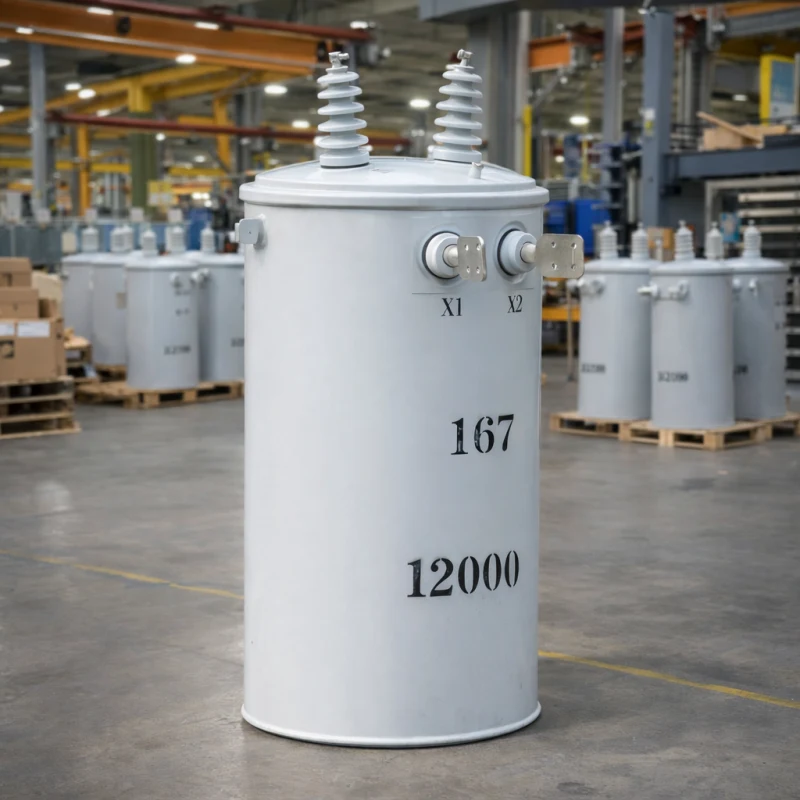

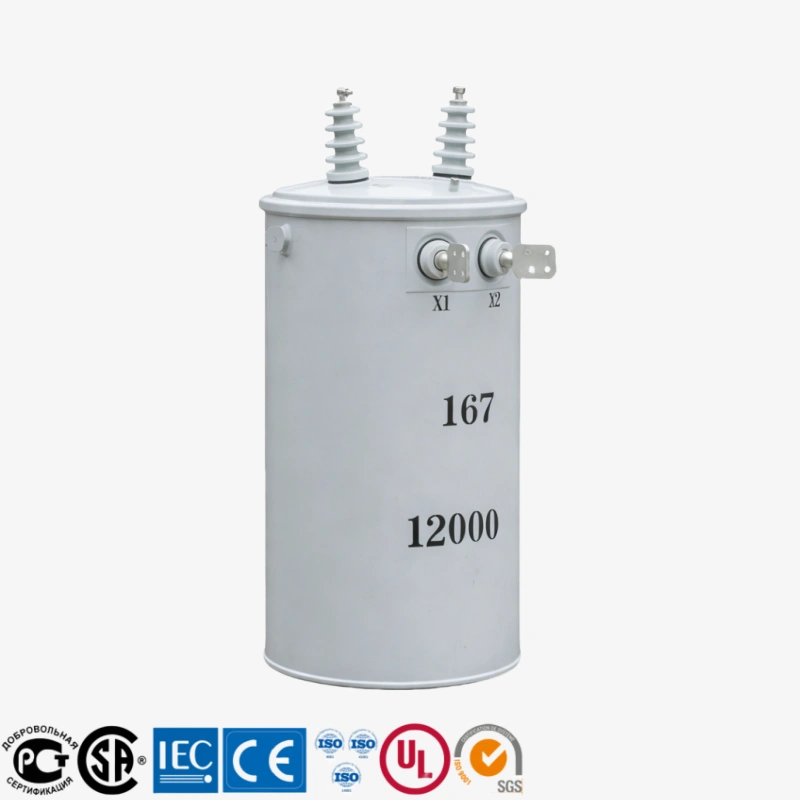

The 167 kVA pole mounted power distribution transformer manufactured by Yawei Transformer is a utility-grade electrical transformer designed for overhead distribution systems, pole mounted substations, and medium-voltage power networks. This pole mounted distribution transformer is widely used in public utility grids, power substations, rural electrification projects, and network expansion programs.
As a distribution transformer manufacturer, factory supplier, OEM producer, and wholesale exporter, Yawei Transformer provides reliable pole mounted transformers for utility companies, EPC contractors, and electrical distributors worldwide.
Product Overview – Pole Mounted Utility Distribution Transformer

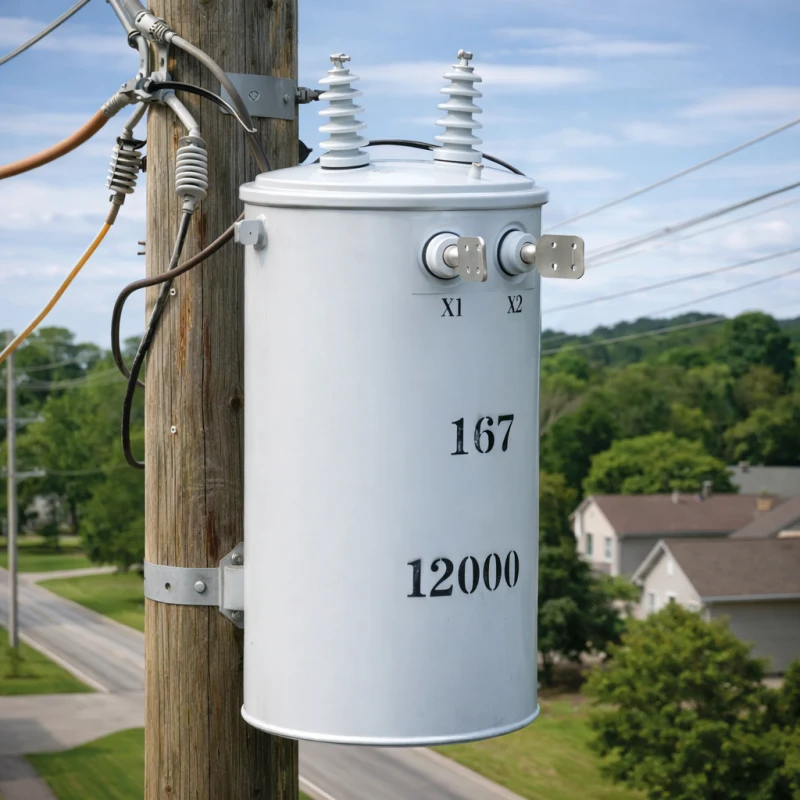

The 167 kVA pole mounted distribution transformer is designed for outdoor installation on utility poles and overhead power lines. This power distribution transformer efficiently converts medium-voltage electricity into safe low-voltage power for residential, commercial, and light industrial consumption.
With its compact pole mounted structure, this utility transformer is ideal for:
-
Overhead distribution networks
-
Pole mounted substation applications
-
Urban and rural power supply systems
-
Grid upgrade and replacement projects
This pole mounted power transformer is engineered for stable performance, long service life, and low maintenance under diverse environmental conditions.
Technical Data Sheet – Electrical and Mechanical Parameters
General Electrical Parameters
| Parameter | Specification |
|---|---|
| Rated Power Capacity | 167 kVA |
| Transformer Type | Pole Mounted Power Distribution Transformer |
| Phase Configuration | Single Phase / Three Phase (Optional) |
| Rated Frequency | 50 Hz / 60 Hz |
| Cooling Method | Oil Immersed, ONAN |
| Installation Method | Outdoor Pole Mounted |
| Insulation Class | Class A / Class B |
High Voltage (Primary Voltage Options)
This pole mounted distribution transformer supports common medium-voltage utility ratings, including:
-
7.2 kV
-
12.47 kV
-
Optional customized medium-voltage ratings
These high-voltage configurations make the transformer suitable for North American, South American, African, and international utility power grids.
Low Voltage (Secondary Voltage Options)
The 167 kVA utility distribution transformer provides multiple low-voltage output options:
-
240/120 V
-
480Y/277 V
-
208Y/120 V
-
Customized secondary voltages available
Low-voltage flexibility allows this pole mounted transformer to match local distribution standards and customer load requirements.
Design Structure and Performance Advantages
Yawei Transformer designs each pole mounted power distribution transformer with a strong focus on electrical efficiency, mechanical strength, and long-term outdoor operation.
Key performance advantages include:
-
Heavy-duty welded steel tank for outdoor installation
-
High-efficiency silicon steel core to reduce no-load losses
-
Precision copper or aluminum windings for voltage stability
-
Advanced insulation system for utility-grade reliability
-
Anti-corrosion coating suitable for tropical, coastal, and industrial environments
These features ensure dependable operation in overhead distribution systems and pole mounted substations.
Applications and Utility Use Cases
The 167 kVA pole mounted utility transformer is widely applied in:
-
Utility overhead distribution networks
-
Pole mounted power substations
-
Residential and commercial power supply systems
-
Rural electrification and grid extension projects
-
Distribution network rehabilitation and modernization
This distribution transformer is suitable for both new installations and replacement of aging utility transformers.
Manufacturing Capability, Factory Supply and OEM Services

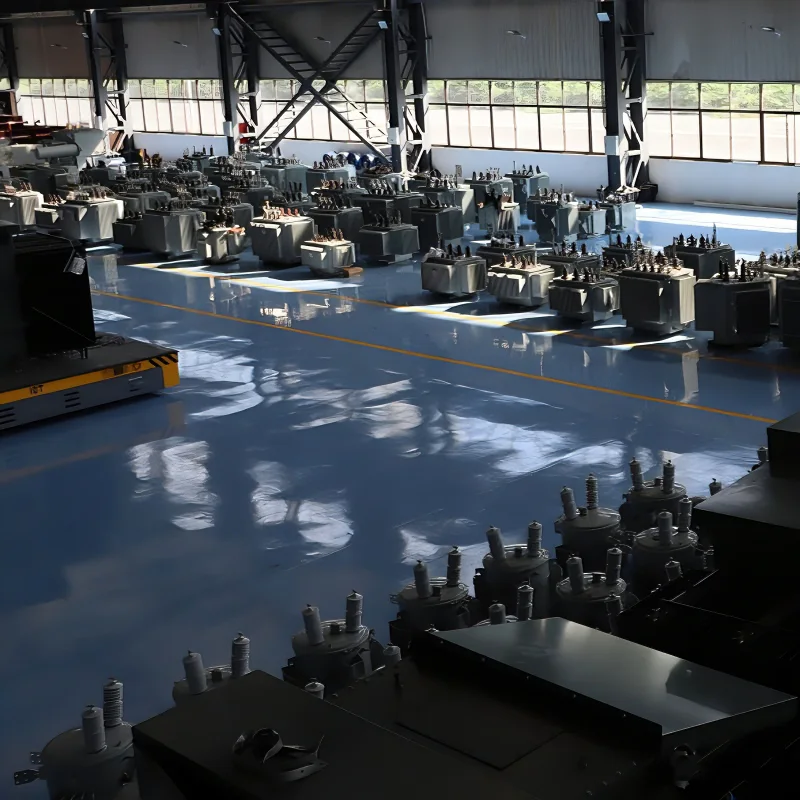

Yawei Transformer is a professional pole mounted distribution transformer manufacturer with modern factory facilities and stable production capacity.
Our manufacturing and supply capabilities include:
-
In-house core cutting and coil winding
-
Factory-direct production and quality control
-
OEM and private label manufacturing
-
Wholesale and bulk transformer supply
-
Customized engineering for utility projects
As a factory-based supplier, we support long-term cooperation with utilities, contractors, and distributors.
Testing, Inspection and Quality Assurance
Each pole mounted power distribution transformer undergoes strict testing and inspection before delivery.
Standard testing includes:
-
No-load loss and load loss measurement
-
Voltage ratio and polarity testing
-
Insulation resistance and dielectric tests
-
Applied voltage and induced voltage testing
-
Oil leakage and sealing inspection
All tests are conducted according to ANSI, IEEE, IEC, or project-specific utility standards.
Global Markets and Project Experience
Yawei Transformer supplies pole mounted distribution transformers to power markets worldwide.
This 167 kVA model has been applied in:
-
North America: United States, Canada, Mexico
-
South America: Brazil, Argentina, Guyana
-
Africa: South Africa and regional utility projects
-
Europe & Others: Germany, France, Italy, Spain, Portugal, Netherlands, Australia, Russia
Our global project experience ensures compatibility with diverse grid requirements.
Packaging, Logistics and International Delivery
The pole mounted utility transformer is packaged for safe international transportation.
-
Export-grade packaging
-
Suitable for sea freight and land transport
-
Clear labeling and technical documentation
-
Flexible shipping arrangements for wholesale orders
After-Sales Service and Technical Support
Yawei Transformer provides long-term support for every pole mounted distribution transformer supplied.
Services include:
-
Technical consultation and design confirmation
-
Installation and operation guidance
-
Spare parts and maintenance support
-
Ongoing cooperation for utility customers
Frequently Asked Questions (FAQ)
Q1: Is this 167 kVA pole mounted transformer customizable?
Yes. Voltage ratings, phase configuration, and standards can be customized.
Q2: Is the transformer suitable for outdoor overhead installation?
Yes. It is specifically designed for outdoor pole mounted applications.
Q3: Which standards can be applied?
ANSI, IEEE, IEC, and other utility standards are supported.
Q4: Do you provide OEM and wholesale supply?
Yes. OEM manufacturing and factory wholesale supply are available.
Why Choose Yawei Transformer
-
Experienced pole mounted transformer manufacturer
-
Factory-direct production and supply
-
Global utility project experience
-
Competitive wholesale pricing
-
Professional technical and sales support
Request Quotation – Factory Direct Supply
If you are sourcing a 167 kVA pole mounted power distribution transformer for utility, substation, or overhead distribution networks, Yawei Transformer is your reliable manufacturing partner.
👉 Contact us now to receive detailed specifications, drawings, and a competitive factory quotation.
