Introduction: Why Substation Transformers Are the Backbone of Power Systems
In every modern power system—whether it serves cities, industrial zones, mines, data centers, or renewable energy plants—substations play a critical role. And at the heart of every substation lies one piece of equipment that determines efficiency, safety, and long-term reliability:
the substation transformer.
From power generation to transmission and final distribution, electricity must be converted between different voltage levels. This voltage transformation is not optional—it is essential. A failure or poor selection of a substation transformer can result in large-scale outages, equipment damage, or millions of dollars in economic losses.
That is why substation transformers are often:
The most expensive asset in a substation
The most technically demanding equipment
The longest-life component, designed for 20–30 years of continuous operation
This article is written as a practical, engineering-oriented guide. Whether you are a project engineer, EPC contractor, utility buyer, or industrial investor, this guide will help you understand substation transformers from fundamentals to real-world selection and procurement.
What Is a Substation Transformer?
A substation transformer is a power transformer installed in electrical substations to convert voltage levels within transmission and distribution networks.
Its main functions include:
Stepping up voltage for long-distance power transmission
Stepping down voltage for regional or industrial distribution
Isolating different sections of the power system
Supporting system stability and fault management
Substation transformers are widely used in:
Power generation plants
Transmission substations
Industrial substations
Renewable energy grid-connection stations
Utility and national grid infrastructure
Substation Transformer vs Distribution Transformer: Key Differences
Although both are power transformers, substation transformers and distribution transformers are fundamentally different in design philosophy and application.
| Aspect | Substation Transformer | Distribution Transformer |
|---|---|---|
| Typical Capacity | ≥ 1 MVA (often 10–500 MVA) | ≤ 2500 kVA |
| Voltage Level | Medium, High, Extra-High Voltage | Medium to Low Voltage |
| Application | System-level voltage conversion | End-user power supply |
| Design Focus | Reliability, system stability | Efficiency, cost |
| Standards | IEC, IEEE, ANSI, GB | IEC, ANSI (simplified) |
| Investment Impact | Core substation asset | Auxiliary system component |
In short:
Substation transformers are designed for system reliability, not just energy efficiency.
Working Principle of Substation Transformers
At its core, a substation transformer operates based on electromagnetic induction. However, large power transformers are far more complex than textbook examples.
Simplified Operating Process:
AC voltage is applied to the high-voltage winding
Alternating magnetic flux is generated in the transformer core
The magnetic flux induces voltage in the secondary winding
Voltage level changes according to the winding turns ratio
Why Substation Transformers Are More Challenging:
Extremely high voltage stress (up to hundreds of kilovolts)
Very large currents
Continuous long-term operation
Exposure to short-circuit forces, lightning impulses, and grid disturbances
This requires advanced engineering in:
Core design
Winding structure
Insulation systems
Cooling technology
Main Types of Substation Transformers
1. Classification by Cooling Method
Oil-Immersed Substation Transformers (Most Common)
Cooling medium: mineral oil or ester oil
Advantages: excellent heat dissipation, long service life
Typical cooling modes: ONAN, ONAF, OFAF
Applications: transmission and distribution substations worldwide
Dry-Type Substation Transformers
Cooling medium: air or epoxy resin
Advantages: fire-resistant, low maintenance
Limitations: capacity and voltage constraints
Applications: indoor substations, urban or fire-sensitive areas
For large-capacity substations, oil-immersed transformers remain irreplaceable.
2. Classification by Application
Step-up transformers (power plants, renewable energy)
Step-down transformers (transmission to distribution)
Interconnecting transformers (grid coupling)
Station service transformers (auxiliary power supply)
3. Classification by Winding Structure
Two-winding transformers
Three-winding transformers
Autotransformers (commonly used in EHV systems)
Key Technical Parameters of Substation Transformers
Understanding these parameters is essential for correct selection and safe operation.
1. Rated Power (MVA)
Typical ratings include:
5, 10, 20, 31.5, 40, 50, 63, 100, 150, 250 MVA
Selection principle:
Rated capacity ≥ maximum load × 1.2–1.3
Allow margin for future expansion
Incorrect capacity selection may lead to:
Chronic overloading
Reduced service life
Increased maintenance costs
2. Rated Voltage and Voltage Ratio
Examples:
110 / 35 kV
220 / 110 / 35 kV
35 / 10 kV
Must clearly define:
System voltage
Tapping range
Connection group (Y, Δ)
Neutral grounding method
3. Impedance Voltage (%)
Limits short-circuit current
Impacts system protection coordination
Must be matched with grid design requirements
This parameter should always be confirmed with the utility or system designer.
4. Cooling Method Code
Common cooling modes:
ONAN: Oil Natural Air Natural
ONAF: Oil Natural Air Forced
OFAF / OFWF: Large-capacity transformers
Cooling design directly affects:
Load capability
Thermal aging
Transformer lifespan
Why Substation Transformer Prices Differ So Much
Many buyers ask:
“Why do two transformers with similar parameters have a 20–50% price difference?”
The answer lies in manufacturing quality and engineering details.
Key Cost Drivers:
1. Core Material and Design
High-grade grain-oriented silicon steel
Low-loss core structure
Precision stacking and clamping
2. Winding Technology
Continuously Transposed Conductors (CTC)
High short-circuit mechanical strength
Optimized electromagnetic balance
3. Insulation System
High-quality insulation paper
Controlled oil-paper aging performance
High dielectric margins
4. Drying and Oil Filling Process
Vacuum drying technology
Moisture content control
Direct impact on service life
A substation transformer is not a “commodity product”—it is an engineered system.
Common Failures and Preventive Measures
Typical Failures:
Insulation degradation
Winding deformation
Oil gas generation
Partial discharge
Preventive Measures:
Correct design and selection
Reasonable loading
Regular oil analysis (DGA)
Online monitoring systems
Early prevention significantly reduces life-cycle costs.
How to Select the Right Substation Transformer for Your Project
Step 1: Define Project Application
Utility grid
Industrial facility
Renewable energy plant
Step 2: Confirm Key Parameters
Rated power (MVA)
Voltage levels
Cooling method
Step 3: Identify Applicable Standards
IEC
IEEE / ANSI
National grid requirements
Step 4: Choose an Experienced Manufacturer
Proven substation transformer references
Engineering support capability
Reliable quality control
Lack of experience in large substation projects is a major risk.
Why Global Clients Choose Yawei Transformer
As a professional power transformer manufacturer, Yawei Transformer focuses on substation-level transformer solutions for global markets.
Our strengths include:

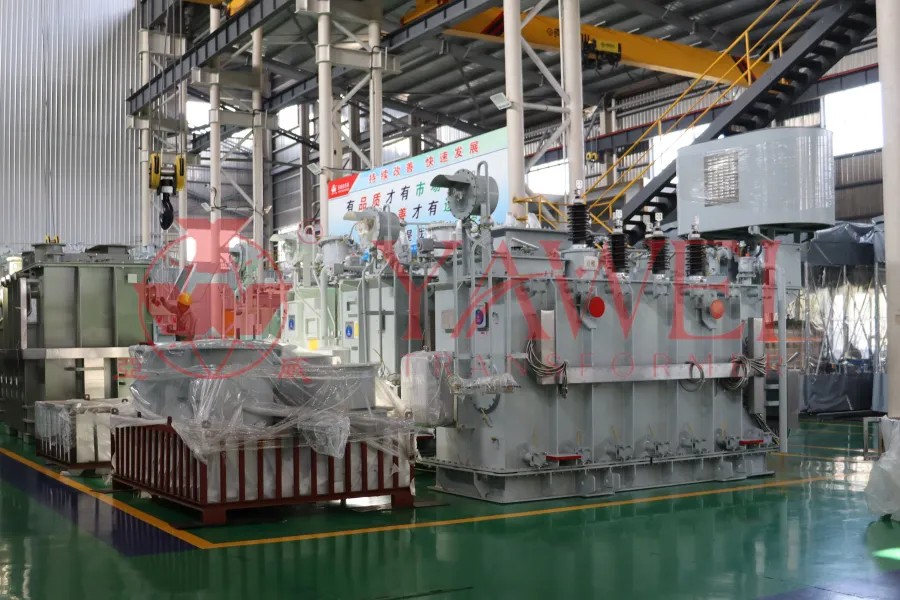

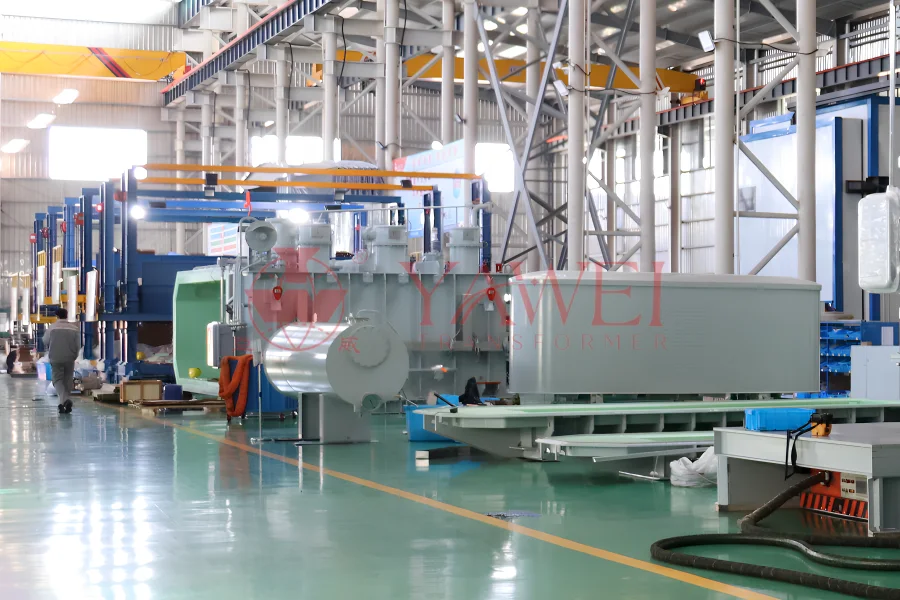

Substation transformers from 5 MVA to 500 MVA
Voltage levels up to extra-high voltage classes
Compliance with IEC, IEEE, ANSI standards
Custom engineering for grid, industrial, and renewable projects
Strict routine and type testing before delivery
We do not simply manufacture transformers—we deliver long-term power reliability solutions.
Final Thoughts: A Substation Transformer Is a 30-Year Investment
In power systems, substation transformers are not consumables—they are strategic assets.
A well-designed and correctly selected transformer means:
Decades of stable operation
Lower maintenance and operating costs
Reduced outage and failure risks
