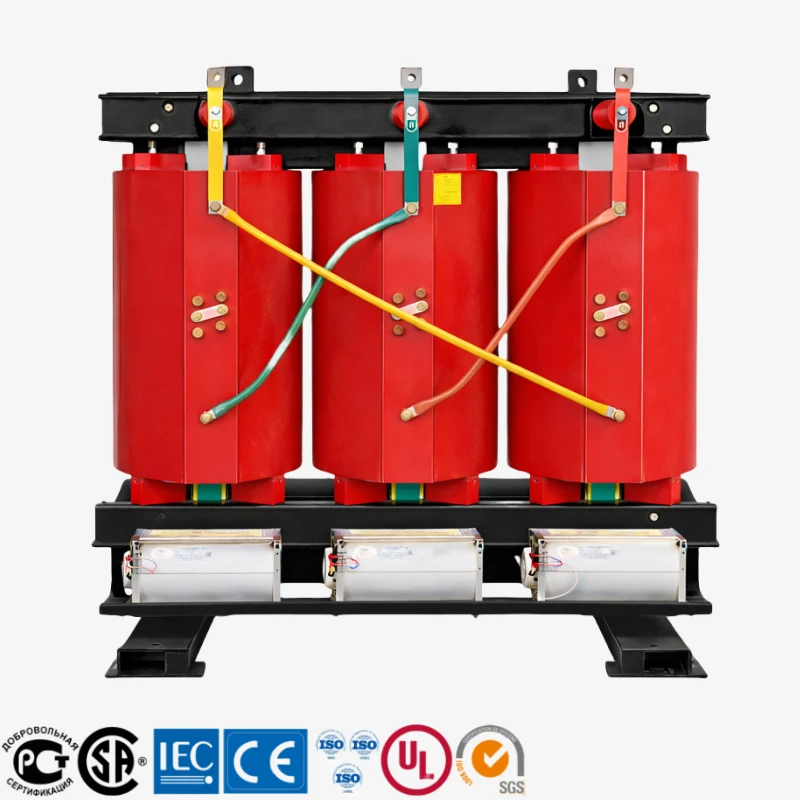

1. 2000 kVA Dry Type Transformer Overview
Manufactured by Yawei Transformer, the 2000 kVA high capacity dry type cast resin transformer is specifically engineered for industrial power distribution, utility networks, data centers, and infrastructure projects worldwide. Utilizing advanced cast resin insulation technology, this dry type transformer delivers high safety, fire resistance, low maintenance, and long-term reliability, making it ideal for indoor, semi-outdoor, or enclosed installations where oil-filled transformers are restricted.
Designed to comply with international standards including IEC, ANSI, IEEE, and GB/T, this transformer supports medium- and high-voltage applications up to 35kV and is available for factory direct supply, customization, and wholesale delivery. Our products are widely deployed in USA, Canada, UK, Germany, France, Spain, Italy, Australia, Mexico, Argentina, Brazil, and other international markets.
This three-phase transformer ensures stable, efficient power distribution, reducing downtime and energy losses while meeting the rigorous demands of industrial, commercial, and utility power systems.
2. 2000 kVA Dry Type Transformer Technical Specifications / Parameters
| Parameter | Specification |
|---|---|
| Rated Capacity | 2000 kVA (customizable, range 100–10,000 kVA) |
| Primary Voltage | 11 kV / 13.2 kV / 20 kV / 35 kV |
| Secondary Voltage | 400 V / 480 V / project-specific low-voltage outputs |
| Transformer Type | Dry Type, Three-Phase, Cast Resin Industrial Power Distribution Transformer |
| Installation Type | Indoor or semi-outdoor, enclosed environments |
| Cooling Method | AN (Air Natural), optional AF (Air Forced) for high-load applications |
| Winding Configuration | Grounded Wye/Wye or Delta; other vector groups available |
| Voltage Regulation | Off-circuit tap changer (standard); optional OLTC for dynamic voltage control |
| Insulation System | Fire-resistant, environmentally friendly cast resin |
| Applicable Standards | IEC, ANSI, IEEE, GB/T |
| Applications | Utility networks, industrial plants, data centers, infrastructure projects, renewable energy systems |
| Dimensions | Approx. 3000 mm (L) × 1200 mm (W) × 1800 mm (H); customizable per project |
| Weight | 3,500–4,500 kg depending on configuration |
| Price Range | USD 50,000–120,000 depending on specifications, voltage, and customization |
Note: Dimensions and prices can be adjusted based on project-specific requirements and custom options.
3. Design & Construction of 2000 kVA Dry Type Transformer
-
Cast Resin Insulation: Advanced epoxy resin ensures fire safety, environmental compliance, and high electrical performance.
-
Three-Phase Design: Ensures stable and efficient power distribution for industrial, utility, and infrastructure applications.
-
Cooling System: Standard AN (Air Natural); AF (Air Forced) available for high-load or data center installations.
-
Vector Groups: Grounded Wye/Wye or Delta; multiple options for industrial flexibility.
-
Robust Enclosure: Corrosion-resistant and impact-resistant for indoor or semi-outdoor use.
4. Industrial, Utility, and Data Center Applications
The 2000 kVA dry type transformer is ideal for:
-
Utility Grids: Medium- and high-voltage distribution for municipal and commercial power systems.
-
Industrial Facilities: Manufacturing, mining, chemical plants, and heavy machinery operations.
-
Data Centers: Ensuring reliable, high-capacity power supply for critical IT infrastructure.
-
Commercial Infrastructure: Airports, hospitals, multi-building campuses, and large commercial complexes.
-
Renewable Energy Systems: Solar farms, wind farms, and hybrid energy installations.
-
Critical Infrastructure Projects: Bridges, tunnels, water treatment plants, and municipal distribution networks.
5. Customization & Factory Supply of 2000 kVA Dry Type Transformer
Yawei Transformer offers factory direct supply, allowing full customization according to:
-
Primary and secondary voltage requirements
-
Capacity specifications from 100 kVA up to 10,000 kVA
-
Installation type and spatial constraints
-
Cooling methods and vector group preferences
We support wholesale orders and bulk project solutions. Each transformer is factory-tested to meet international standards, ensuring reliable global performance.
6. Installation & Maintenance Guidelines
-
Indoor or Semi-Outdoor Installation: Suitable for warehouses, substations, or enclosed industrial buildings.
-
Low Maintenance: Cast resin insulation eliminates oil leakage and reduces fire hazards.
-
Inspection & Testing: Factory-tested for dielectric strength, temperature rise, and load performance.
-
Optional Accessories: Temperature sensors, monitoring systems, and OLTC for precise voltage regulation.
7. Global Supply & International Sales
Yawei Transformer provides 2000 kVA dry type transformers to USA, Canada, UK, Germany, France, Spain, Italy, Australia, Mexico, Argentina, Brazil, and other regions. Services include:
-
Assistance with customs clearance
-
Global logistics for industrial equipment
-
Installation guidance and after-sales support
8. Safety & Standards Compliance
-
Fire-Resistant Design: Cast resin insulation for safe operation.
-
International Standards: IEC, ANSI, IEEE, GB/T compliance; optional UL/CSA certifications.
-
Operational Safety: Protects both personnel and equipment in industrial, commercial, and utility environments.
9. Frequently Asked Questions (FAQ)
Q1: Can this transformer be customized for voltages outside 11–35 kV?
A1: Yes, Yawei Transformer can provide custom voltage configurations per project requirements.
Q2: What is the expected service life?
A2: Typically 25–30 years under normal operating conditions with regular inspection.
Q3: How is pricing determined?
A3: Pricing depends on capacity, voltage, cooling method, and customization. Typical range: USD 50,000–120,000.
Q4: Is international shipping available?
A4: Yes, we provide worldwide delivery including North America, Europe, South America, and Oceania.
10. Why Choose Yawei Transformer
-
Over 20 years of experience manufacturing dry type transformers
-
Full range of capacities: 100 kVA – 10,000 kVA and voltages up to 35 kV
-
Factory direct supply with custom and wholesale options
-
Strict quality control and internationally certified
-
Global after-sales support for installation and maintenance
11. Conclusion
The 2000 kVA High Capacity Dry Type Cast Resin Transformer by Yawei Transformer provides a reliable, high-performance, and safe solution for industrial, utility, data center, and infrastructure projects. With customizable design, factory direct supply, and global shipping, it is ideal for customers worldwide seeking premium dry type power distribution solutions.
This transformer supports medium- and high-voltage applications from 400 V, 480 V, 600 V, 690 V up to 11 kV, 13.2 kV, 15 kV, 20 kV, 25 kV, and 35 kV, and is available in capacities ranging from 100 kVA, 250 kVA, 500 kVA, 750 kVA, 1000 kVA, 1500 kVA, 2000 kVA, up to 10,000 kVA. This wide range of voltage and capacity options ensures compatibility with utility grids, industrial power systems, commercial facilities, data centers, and infrastructure projects worldwide.
Whether you require custom configurations, high-load performance, or bulk supply, Yawei Transformer delivers safe, efficient, and globally compliant dry type transformers designed for long-term reliability and optimal performance across diverse industrial applications.
